Description

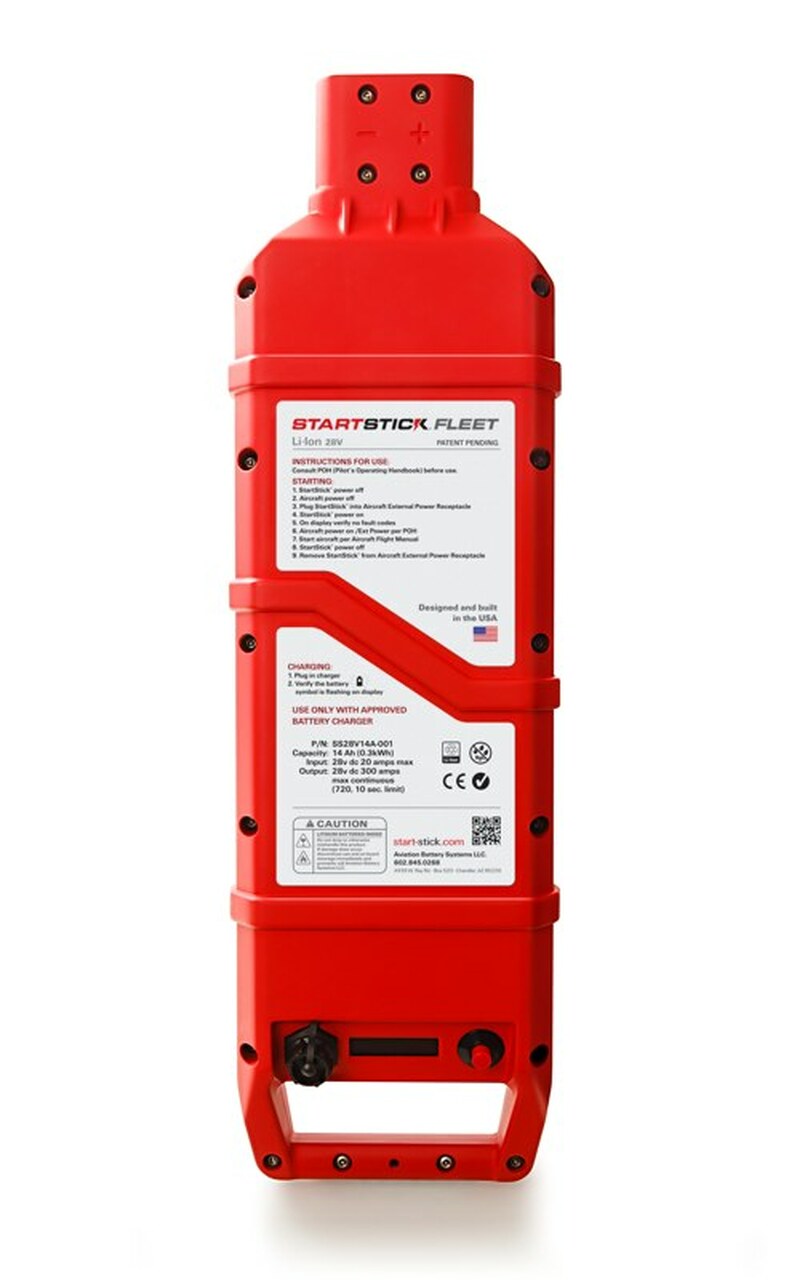

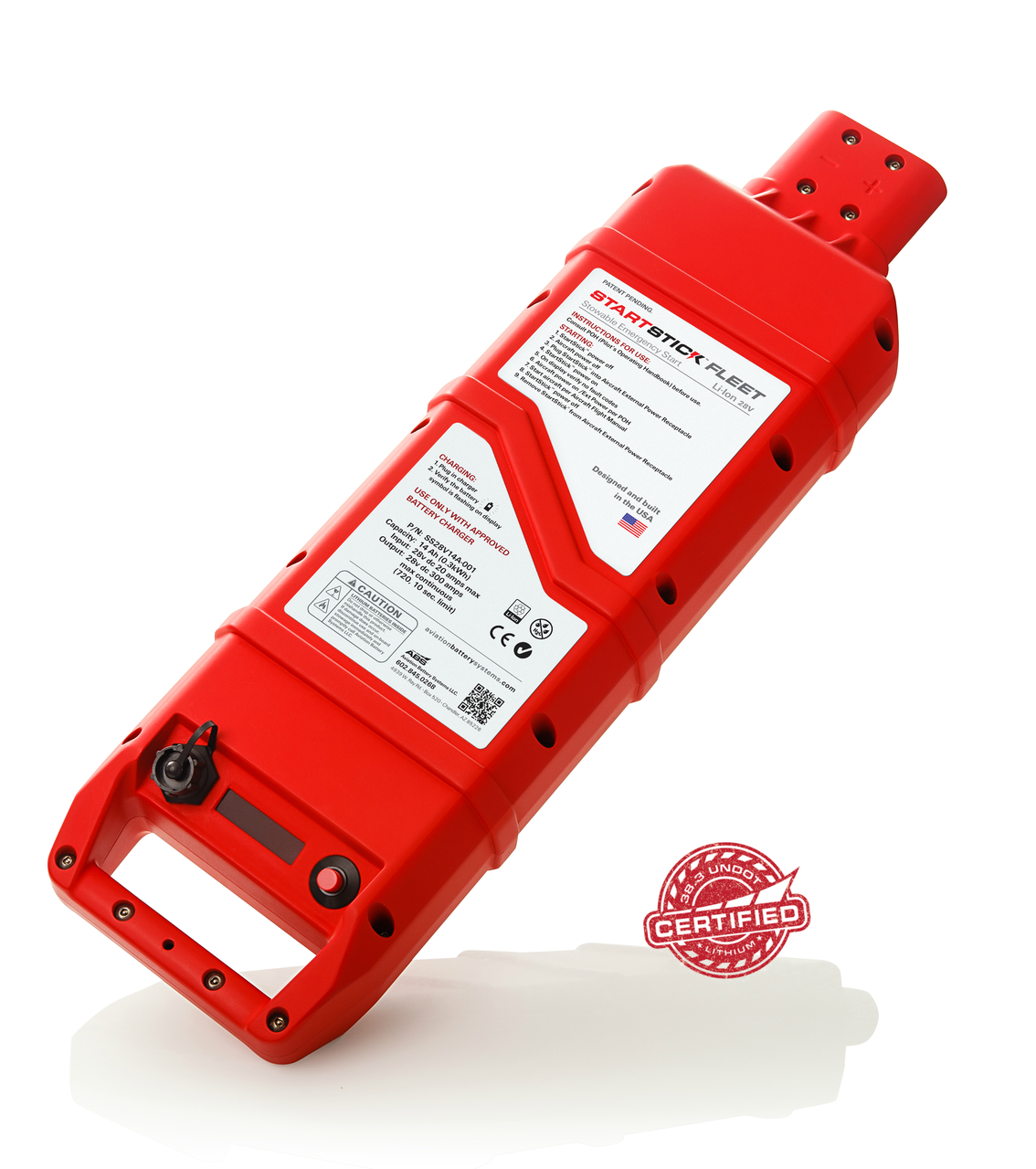

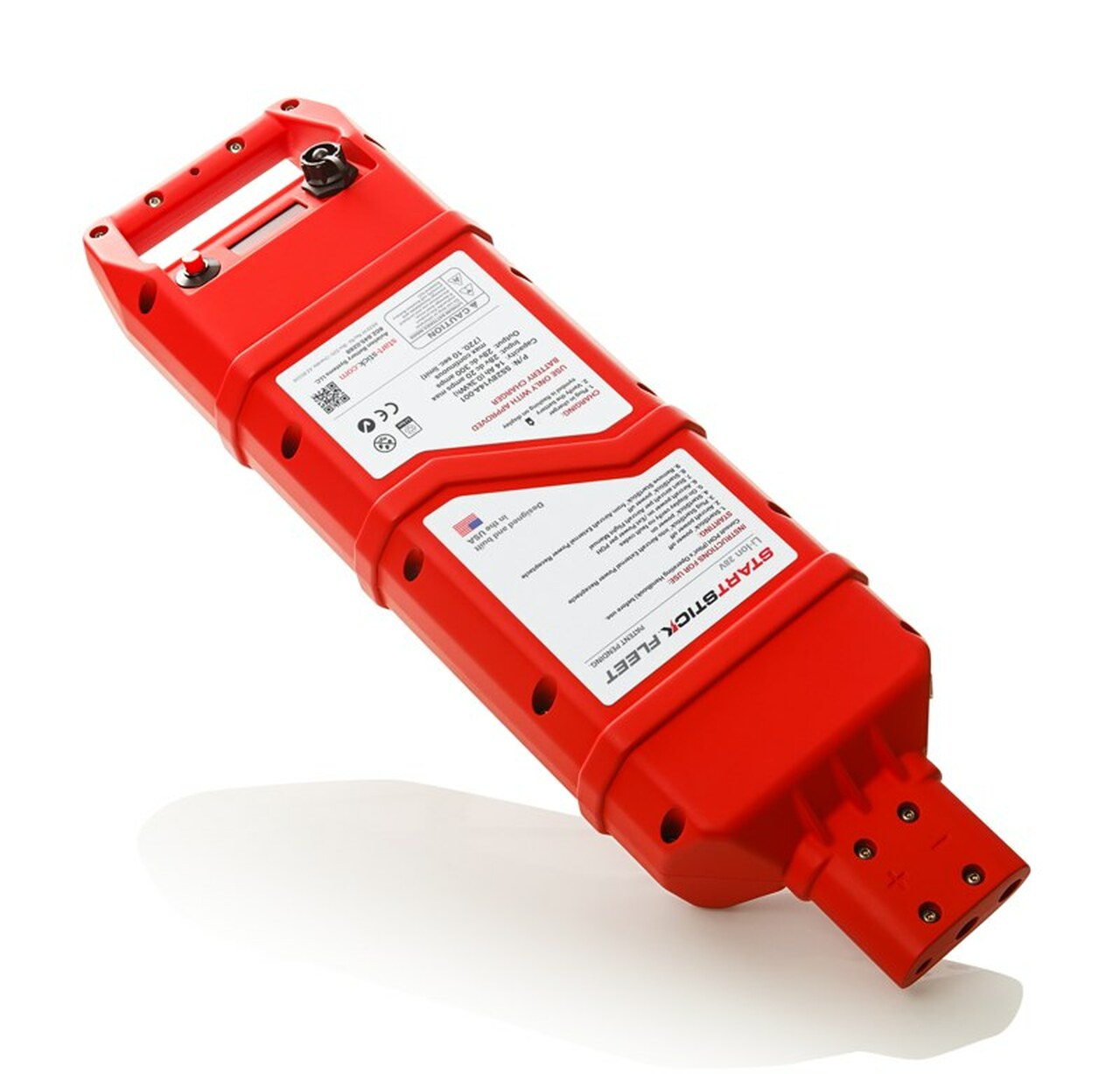

Lightweight/portable GPU
for ramp and hanger or off-airport operations.
BENEFITS FOR FIXED WING AIRCRAFT AND HELICOPTERS
- Fully Serviceable Battery Pack
- 3 to 4 Engine Starts Per Charge
- Transmits up to 28 kilowatts of power
- Smart Lithium Technology
- 3,000 to 4,000 starts – Time Before Overhaul
- Charge Port attaches to on-board auxiliary power supply
- Includes 120/220V 50/60hzs battery charger
- Short Circuit Protection
- Impact, water and chemical resistant polymer case
- 2-year Warranty
| Weight | 14.9 lbs |
| Load on GPU Connector | 70 lbs/foot |
| Length | 21.21″ |
| Width | 6.25″ |
| Height | 3″ |
| Electrical Specifications | |
| Capacity | 14.7 Ah |
| Capacity (lead acid equivalent) | 29.4 Ah |
| Nominal Voltage | 26.4 Volts |
| Max current (10 sec limit) | 720 Amps |
| Max current (Continuous) | 300 Amps |
| Max current (Protection off) | 38800 Amps |
| Max current (Protection on) | 1350 Amps |
| Operating Temperature | -30 to 60 deg C |
| AC Charger Input Voltage | 110/240 Volts |
| In-Flight Charge Circuit Rating | 5 Amps |
| Charge Rate (software regulated) | 3.5 Amps |
| Battery Life | |
| Number of starts per charge | 4-Mar |
| Time before discharge | 44 minutes |
| Charge Cycles | >1,000 |
| Engine Starts | 3,000 – 4,000 |
| Charge Time (after one start) | 25-35 minutes |
| Charge Time (dead battery) | 4.2 hours |
| Misc Specifications | |
| State of Charge Indicator | Yes |
| Ballistic Nylon Case | Yes |
| UNDOT Tested | Yes |
| Injection Molded Case | Yes |
| Emergency Start | Yes |
| Ground Operations | Yes |
| Database Updates | Yes |
| On-Board Charger | Yes |
| Fully Sealed | Yes |
| Automatic Shut-off | Yes |
| High Rate Charging | Yes |
| 2-Year Warranty | Yes |
| Military Grade | No |
