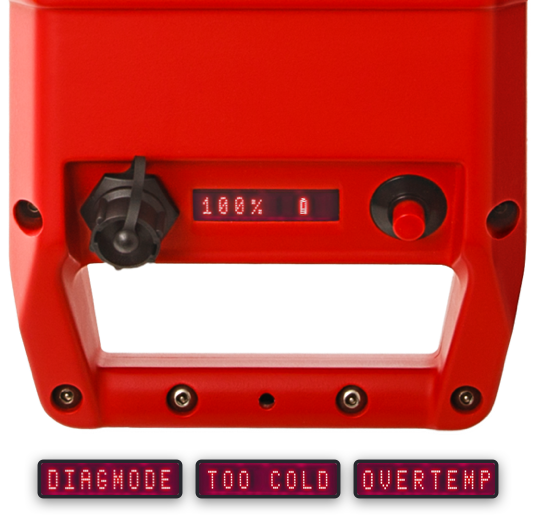

Get critical data
- Easy-to-read In any light condition
- See battery charge status, capacity and diagnostics

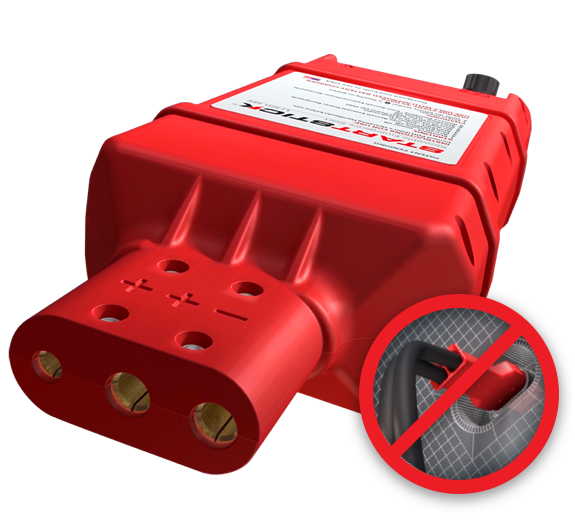

Cable Free, Hassle Free Design
- StartStick connects to any NATO port
- Eliminates cumbersome cables
Convenience where
it counts.

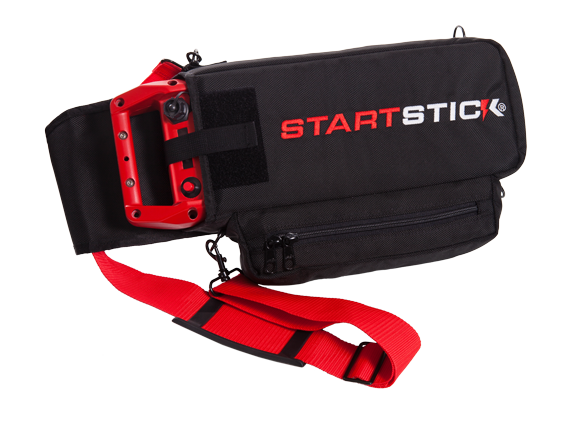

- Ballistic nylon bag with tie down rings for secure stowage
- Lightweight & portable means you can carry it anywhere
Get critical data
at-a-glance.
- Easy-to-read In any light condition
- See battery charge status, capacity and diagnostics
Lock into the
power you need.
- StartStick connects to any NATO port
- Eliminates cumbersome cables
Convenience where
it counts.
- Ballistic nylon bag with tie down rings for secure stowage
- Lightweight & portable means you can carry it anywhere

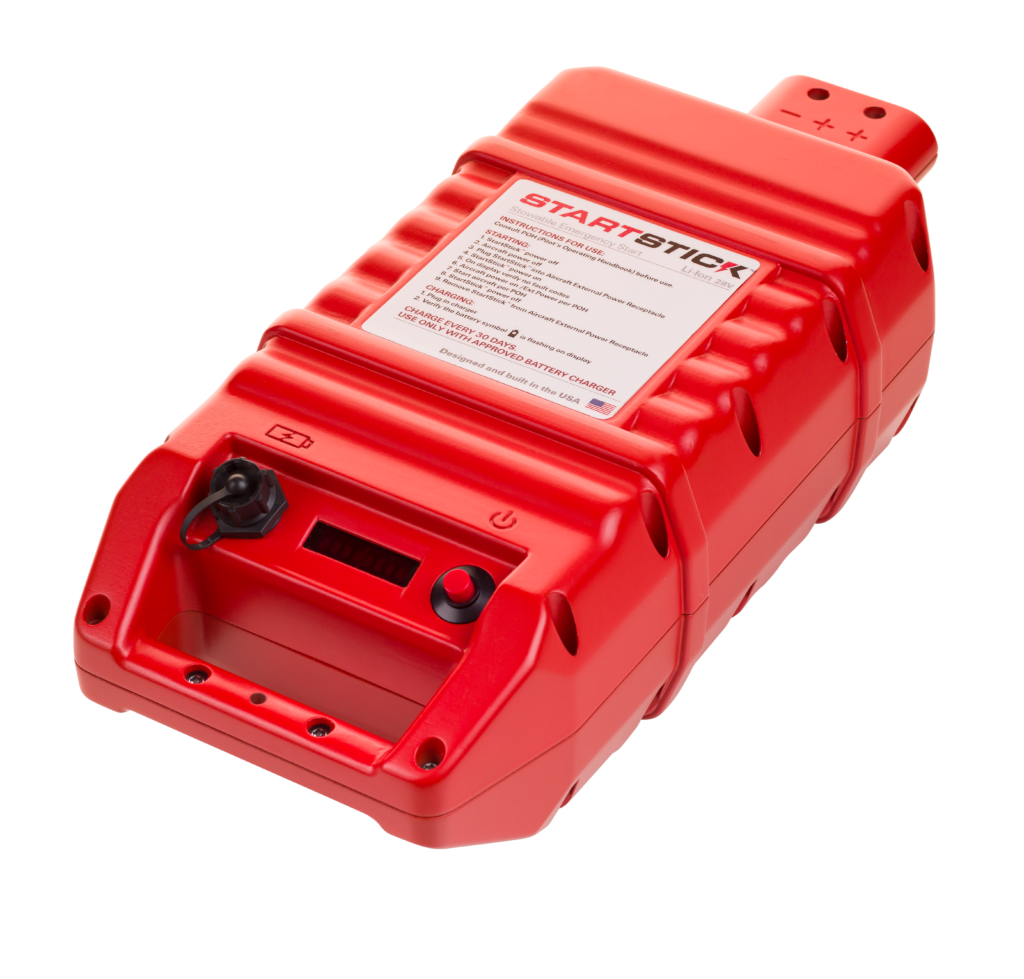

Lightweight GPU
for ramp and hanger.
BENEFITS FOR FIXED WING AIRCRAFT
- Fully Serviceable Battery Pack
- 3 to 4 Engine Starts Per Charge
- Transmits up to 28 kilowatts of power
- Smart Lithium Technology
- 3,000 to 4,000 starts – Time Before Overhaul
- Charge Port attaches to on-board auxiliary power supply
- Includes 120/220V 50/60hzs battery charger
- Short Circuit Protection
- Impact, water and chemical resistant polymer case
- 2-year Warranty
Portable GPU for
off-airport operations.
BENEFITS FOR HELICOPTERS
- Fully Serviceable Battery Pack
- 3 to 4 Engine Starts Per Charge
- Transmits up to 28 kilowatts of power
- Smart Lithium Technology
- 3,000 to 4,000 starts – Time Before Overhaul
- Charge Port attaches to on-board auxiliary power supply
- Includes 120/220V 50/60hzs battery charger
- Short Circuit Protection
- Impact, water and chemical resistant polymer case
- 2-year Warranty
Compare StartStick Models
| wdt_ID | specifications | StartStick 10 | StartStick 15 | StartStick 20 |
|---|---|---|---|---|
| 3 | Mechanical Specifications | |||
| 4 | Weight | 10.6 lbs | 14.9 lbs | 20 lbs |
| 5 | Load on GPU Connector | 7.76 lbs/ft | 12.4 lbs/ft | 14.9 lbs/ft |
| 6 | Length | 17" | 21.21" | 17.25" |
| 7 | Width | 6.19" | 6.19" | 7.31" |
| 8 | Height | 3" | 3" | 4.27" |
| 10 | Electrical Specifications | |||
| 11 | Capacity | 9.7 Ah | 14.7 Ah | 19.4 Ah |
| 12 | Capacity (lead acid equivalent) | 19.4 Ah | 29.4 Ah | 38.8 Ah |
| 13 | Nominal Voltage | 26.4 Volts | 26.4 Volts | 26.4 Volts |
| 14 | Max current (Pulse) | 800 Amps | 800 Amps | 1600 Amps |
| 15 | Max current (Continuous) | 200 Amps | 300 Amps | 400 Amps |
| 16 | Max current (Protection off) | 19400 Amps | 25866 Amps | 51733 Amps |
| 17 | Operating Temperature | -30 to 60 degrees | -30 to 60 degrees | -30 to 60 degrees |
| 18 | AC Charger Input Voltage | 110/240 Volts | 110/240 Volts | 110/240 Volts |
| 19 | In-Flight Charge Circuit Rating | 5 Amps | 5 Amps | 5 Amps |
| 20 | Charge Rate (software regulated) | 3.5 Amps | 3.5 Amps | 3.5 Amps |
| 21 | Battery Life | |||
| 23 | Number of starts per charge | 3-4 | 3-4 | 3-4 |
| 24 | Time before discharge | 29 minutes | 44 minutes | 58 minutes |
| 25 | Charge Cycles | >1,000 | >1,000 | >1,000 |
| 26 | Engine Starts | 3,000 - 4,000 | 3,000 - 4,000 | 3,000 - 4,000 |
| 27 | Charge Time (after one start) | 25-35 minutes | 25-35 minutes | 25-35 minutes |
| 28 | Charge Time (dead battery) | 2.8 hours | 4.2 hours | 5.6 hours |
| 29 | Misc Specifications | |||
| 31 | State of Charge Indicator | Yes | Yes | Yes |
| 32 | Ballistic Nylon Case | Yes | Yes | Yes |
| 33 | UNDOT Tested | Yes | Yes | Yes |
| 34 | Injection Molded Case | Yes | Yes | Yes |
| 35 | Emergency Start | Yes | Yes | Yes |
| 36 | Ground Operations | Yes | Yes | Yes |
| 37 | Database Updates | Yes | Yes | Yes |
| 38 | On-Board Charger | Yes | Yes | Yes |
| 39 | Fully Sealed | Yes | Yes | Yes |
| 40 | Automatic Shut-off | Yes | Yes | Yes |
| 41 | High Rate Charging | Yes | Yes | Yes |
| 42 | 2-Year Warranty | Yes | Yes | Yes |
